How To Create A Production Image For A Node.js + TypeScript App Using Docker Multi-Stage Builds

October 6th, 2022

  • Docker
  • Node.js
  • TypeScript
How To Create A Production Image For A Node.js + TypeScript App Using Docker Multi-Stage Builds

Photo by Filip Kominik

This article is a step by step guide on how to use Docker multi-stage builds to create a production image that is small, readable and maintainable.

As an example, you will build an Apollo Server application in Node.js and TypeScript.

Table of contents

  1. Clone the application
  2. Test production scripts manually
  3. Write the Dockerfile
    • Problem 1 - You don't want devDependencies in the final image
    • Problem 2 - Multiple RUN commands increase the image size
    • Problem 3 - The Dockerfile is hard to read and prone to mistakes
  4. Run the production image on port 4000

1. Clone the application

Clone this repository into a folder of your choice:

git clone git@github.com:AndreaDiotallevi/apollo-server-docker.git

Open the folder with your favourite code editor:

code apollo-server-docker

These are the scripts and dependencies you'll refer to:

// package.json
{
    ...
    "scripts": {
        "build": "tsc -p .",
        "dev": "ts-node-dev src/index.ts",
        "start": "node dist/index.js"
    },
    ...
    "dependencies": {
        "apollo-server": "^3.10.0",
        "graphql": "^16.5.0"
    },
    "devDependencies": {
        "@types/node": "^18.0.0",
        "ts-node-dev": "^2.0.0",
        "typescript": "^4.8.3"
    }
}

And this is the node server index.ts, with a placeholder query hello:

import { ApolloServer } from "apollo-server"

const server = new ApolloServer({
    typeDefs: `#graphql
        type Query {
            hello: String
        }
    `,
    resolvers: {
        Query: {
            hello: () => "hello",
        },
    },
})

server.listen().then(({ url }) => {
    console.log(`🚀  Server ready at ${url}`)
})

Install all dependencies and test you can start the server locally:

yarn install && yarn dev

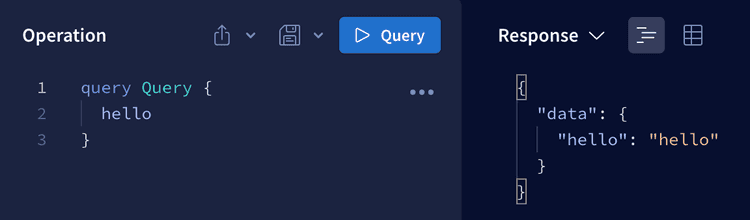

If everything works correctly, you should be able to access the server at http://localhost:4000 and query hello successfully:

Apollo Server Query

Close the local server with Ctrl+C.

2. Test production scripts manually

Before moving straight to the Dockerfile, test the build script locally:

yarn build

This command uses the TypeScript compiler tsc to compile TypeScript files into JavaScript files, which is what the browser ultimately reads.

Since there is only a file inside the src folder (index.ts), you should see only one file inside the dist folder (index.js).

The configuration options for tsc are set in the tsconfig.json:

// tsconfig.json
{
    "compilerOptions": {
        "rootDir": "./src" /* Specify the root folder within your source files. */,
        "target": "es5" /* Set the JavaScript language version for emitted JavaScript and include compatible library declarations. */,
        "module": "commonjs" /* Specify what module code is generated. */,
        "types": [
            "node"
        ] /* Specify type package names to be included without being referenced in a source file. */,
        "outDir": "./dist" /* Specify an output folder for all emitted files. */,
        "esModuleInterop": true /* Emit additional JavaScript to ease support for importing CommonJS modules. This enables 'allowSyntheticDefaultImports' for type compatibility. */
    }
}

Now that the dist folder has been populated, run index.js with node:

yarn start

Same as before, if everything works correctly, you should be able to query the server successfully at http://localhost:4000.

Close the local server with Ctrl+C.

3. Write the Dockerfile

Start from a base image with node and alpine:

FROM node:16-alpine

Define a working directory to avoid unintended operations in unknown directories:

WORKDIR /app

Copy everything into the container working directory:

COPY . .

To ignore files or folders, list them in the .dockerignore:

# .dockerignore
dist
node_modules
README.md

Install all dependencies and compile the TypeScript files into the dist folder:

RUN yarn install
RUN yarn build

Define the command to execute when the container is run:

CMD [ "yarn", "start" ]

Here is the first version of the Dockerfile in full:

# Version 1
FROM node:16-alpine
WORKDIR /app
COPY . .
RUN yarn install
RUN yarn build
CMD [ "yarn", "start" ]

Problem 1 - You don't want devDependencies in the final image

Delete the node_modules after the build and install only --production dependencies:

# Version 2
FROM node:16-alpine
WORKDIR /app
COPY . .
RUN yarn install
RUN yarn build
RUN rm -rf node_modules
RUN yarn install --production
CMD [ "yarn", "start" ]

Problem 2 - Multiple RUN commands increase the image size

Build the image with the tag version2:

docker build -t version2 .

Check the image size:

docker images | grep version2

The image size is 321MB:

>> version2   latest   bc7c4efc4680   37 seconds ago   321MB

Since every RUN command creates a new layer, chain consecutive RUN statement to create only one layer:

# Version 3
FROM node:16-alpine
WORKDIR /app
COPY . .
RUN yarn install \
&& yarn build \
&& rm -rf node_modules \
&& yarn install --production
CMD [ "yarn", "start" ]

This time, build the image with the tag version3:

docker build -t version3 .

Check the image size:

docker images | grep version3

The image size is 234MB:

version3   latest   004141971cd6   8 seconds ago   234MB

You saved 87MB!

Problem 3 - The Dockerfile is hard to read and prone to mistakes

Docker multi-stage builds allow you to create separate stages that have independent size and file system:

FROM node:16-alpine AS builder
WORKDIR /app
# It needs all dependencies (dev and prod)
# It's in charge of creating the dist folder

FROM node:16-alpine AS final
WORKDIR /app
# It needs only the production dependencies
# It's in charge of creating the final image

Since the builder stage doesn't create the final image, maximise for readability:

FROM node:16-alpine AS builder
WORKDIR /app
COPY . .
RUN yarn install
RUN yarn build

FROM node:16-alpine AS final
WORKDIR /app
...

In the final image, COPY the dist folder from the builder stage and install only production dependencies:

# Version 4
FROM node:16-alpine AS builder
WORKDIR /app
COPY . .
RUN yarn install
RUN yarn build

FROM node:16-alpine AS final
WORKDIR /app
COPY --from=builder ./app/dist ./dist
COPY package.json .
COPY yarn.lock .
RUN yarn install --production
CMD [ "yarn", "start" ]

This time, build the image with the tag version4:

docker build -t version4 .

Check the image size:

docker images | grep version4

The image size is 234MB:

version4   latest   d2cc6fcb6fa3   11 seconds ago   234MB

You have achieved the same image size with a much more readable and maintainable Dockerfile.

4. Run the production image on port 4000

Since the app listens on port 4000, run the image and map the container 4000 port to your local machine 4000 port:

docker run -p 4000:4000 version4

You should now be able to query the server at http://localhost:4000.

To view the containers currently running in your local machine:

docker ps
>> CONTAINER ID   IMAGE       COMMAND                  CREATED          STATUS          PORTS                    NAMES
   5221f7343a0c   version4    "docker-entrypoint.s…"   43 seconds ago   Up 42 seconds   0.0.0.0:4000->4000/tcp   eager_napier

To stop the container, use the container id:

docker stop 5221f7343a0c

Although Docker multi-stage builds is not the only way to create small, readable and maintainable images, it's certainly the most elegant.

Try it out!
